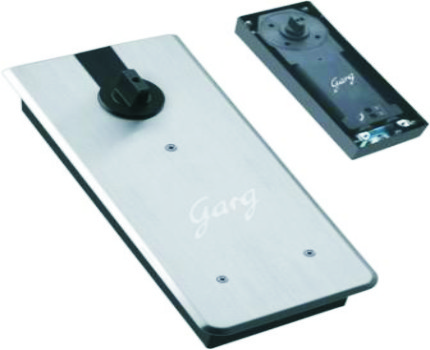

FLOOR SPRING
CODE: FLS908
SPECIAL FEATURES:
* High quality casted iron floor spring body in double layer coated steel body. Stainless Steel cover.
* Suitable for both single and double action doors. Internal mechanism parts heats treated & with ball bearings for optimum wear resistance and efficiency.
* Closer mechanism immersed completely in hydraulic fluid.
* Stable hydraulic fluid suitable for all weather and construction lubrication.
* Floor spring comply to EN 1154 standard.
*Double action opening. Hold open at 90d.
* Can be used with glass door 8-12mm, wooden door, iron door, aluminium door.
* Adjustable closing and Latching speed.
* Tested for 5,00,000 cycles.
* German machine oil and sealed rings, keep perfect working even in extreme temperatures.

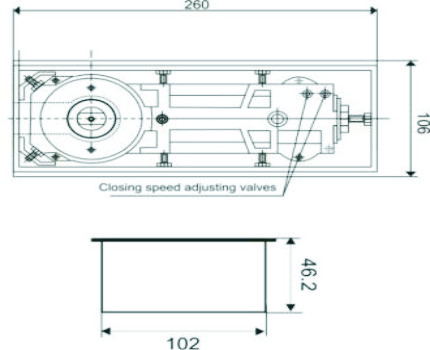

Technical Details:
MAXIMUM DOOR WEIGHT : 60KG
MAXIMUM DOOR WIDTH : 900MM
MAXIMUM OPENING ANGLE : MAX.116d, HOLD OPEN AT 90d
DOUBLE WAY OPENING : DOUBLE WAYS OPENING
CLOSING SPEED ADJUSTABLE : 116d - 20d
LATCHING SPEED ADUSTABLE : 20d- 0d
